DownloadScicos > Palettes
Sources: constants, function generators, clocks, file input,...Sinks: outputs, scopes, meters, file output,...

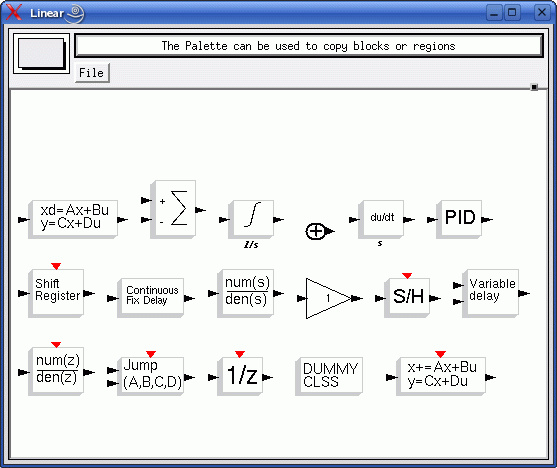

Linear: state space, sum, integral, differential, transfer functions, gain, sample & hold, z-Transform,...

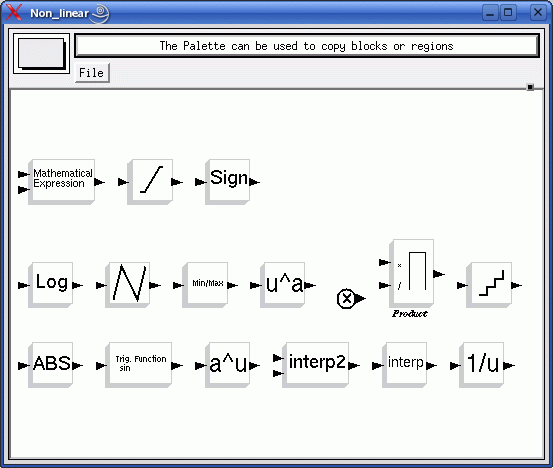

Non-linear: math expression, saturation, log, look-up table, product, exponential, trigonometric function, step function, interpolation,...

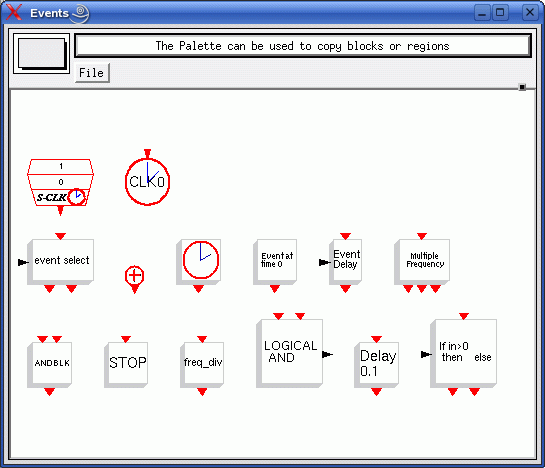

Events: clock, delays, halt, binary ops,...
Matrix: Matrix operations,...
Integer: Flip-flop, integer conversions,...

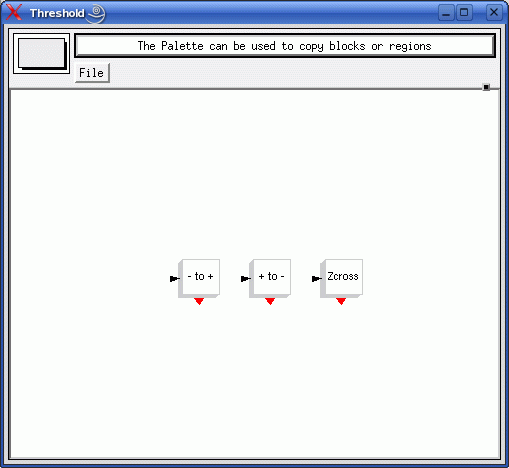

Threshold: upward, downward, zero-crossing,...

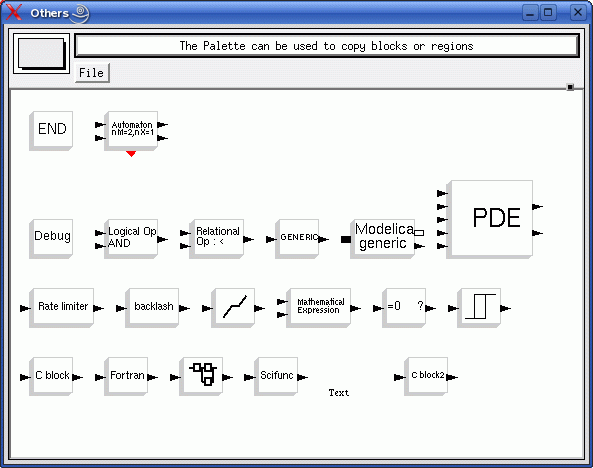

Others: logical, generic, rate, dead band, constraints, hysteresis, code blocks, text, super block,...
Branching: if-then-else, switch, mux, demux, relay,...

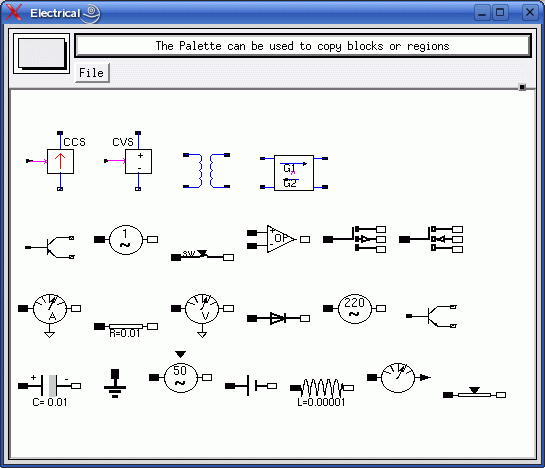

Electrical: meters, supplies, discrete components,...
ThermoHydraulics: pipe, tap, wells, container ,...

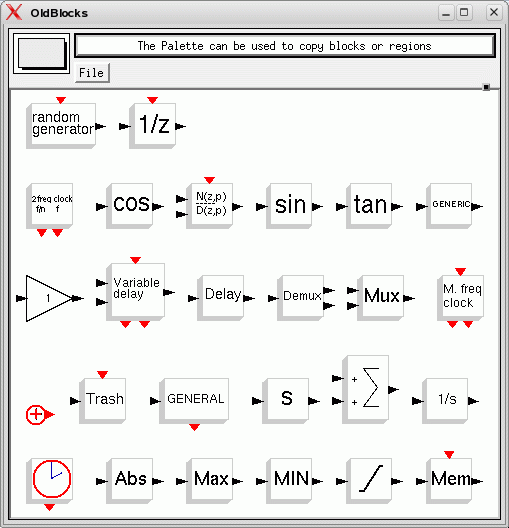

Old Blocks: old version of Scicos blocks upgraded to current format (kept for backward compatibility),...

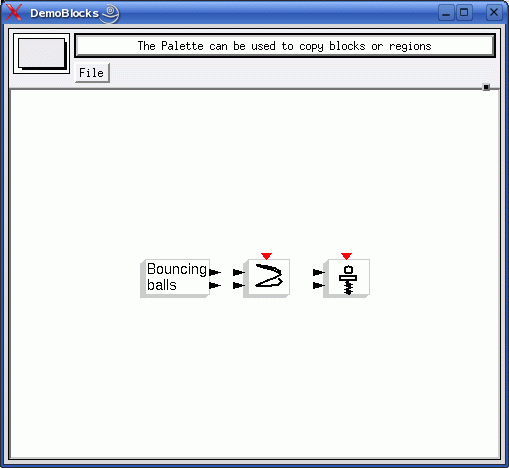

Demo Blocks: bouncing balls, scope,...
RTAI-Lib: Hard real-time acquisition card interfaces, scope, meter, FIFO, mailboxes,...

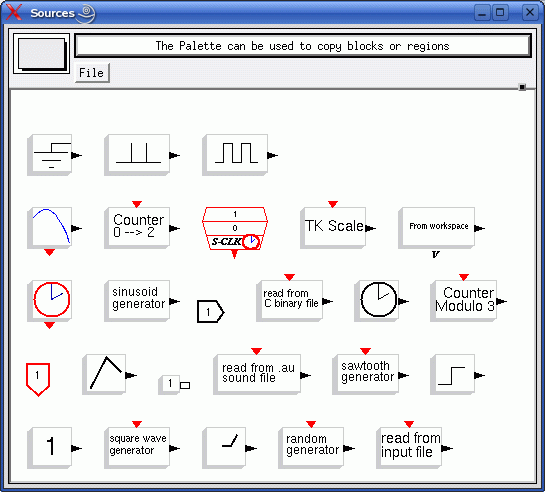

| Sources | |
 |
|
| |
^ Go top of page ^ |

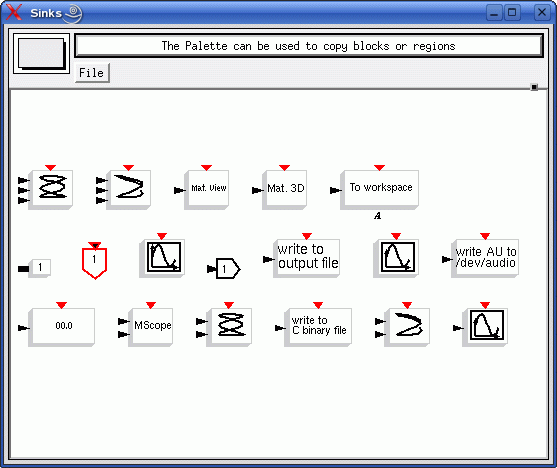

| Sinks | |
 |
|
| |
^ Go top of page ^ |
| Linear | |
 |
|
| |
^ Go top of page ^ |
| Non-linear | |
 |
|
| |
^ Go top of page ^ |
| Events | |
 |
|
| |
^ Go top of page ^ |

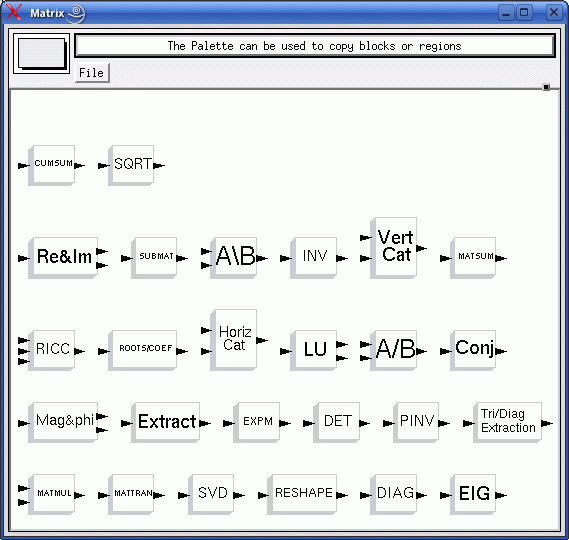

| Matrix | |
 |
|
| |
^ Go top of page ^ |

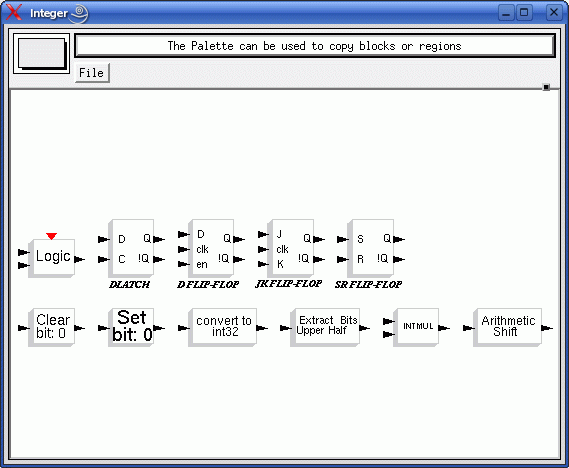

| Integer | |
 |
|
| |
^ Go top of page ^ |
| Threshold | |
 |
|
| |
^ Go top of page ^ |
| Others | |
 |
|
| |
^ Go top of page ^ |

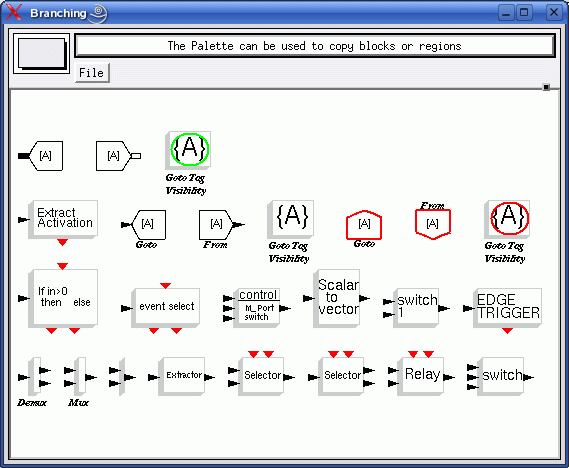

| Branching | |
 |
|
| |
^ Go top of page ^ |
| Electrical | |
 |
|
| |
^ Go top of page ^ |

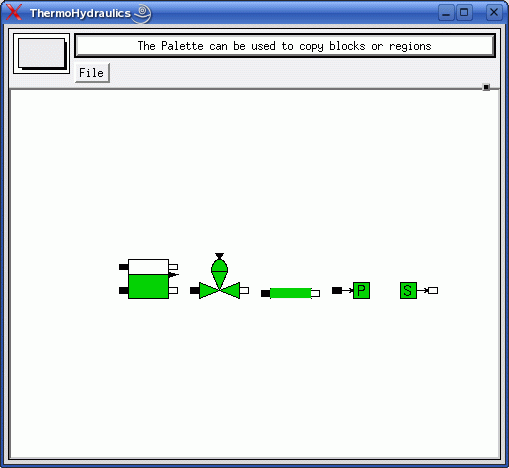

| ThermoHydraulics | |
 |
|
| |
^ Go top of page ^ |
| Old
blocks |
|
 |
|
| |
^ Go top of page ^ |
| Demo
blocks |
|
 |
|
| |
^ Go top of page ^ |

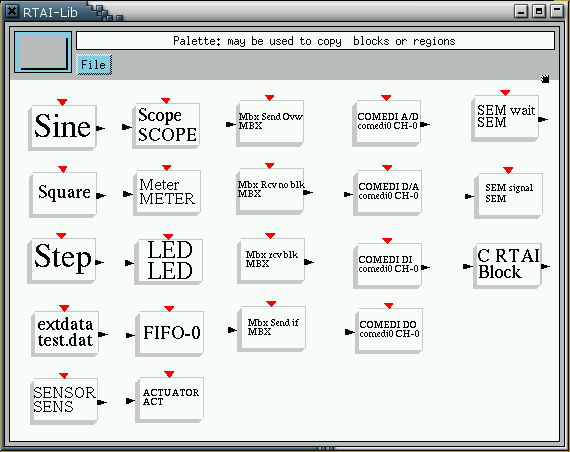

| RTAI-Lib |
|
Note: This palette is not part of the
Scilab/Scicos distribution. It is added when installing RTAI, a real-time patch to the Linux
operating system.  |
|
| |
^Go
top of page^ Go RTAI-Lab snapshot >> << Go Scicos homepage |
