Small Net

$net={\rm TrafficExample}('Small')$

Figure 12: Non-assigned and Assigned Small Net

GP	LPF data	Demands

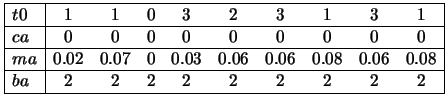

$\begin{array}{\vert c\vert c\vert c\vert} \hline nn & ln & dn\\ \hline 4 & 9 & 2\\ \hline \end{array}$	$\begin{array}{\vert l\vert ccccccccc\vert} \hline t0 & 1 & 1 & 0 & 3 & 2 & 3 & ... ....06 & 0.08\\ \hline ba & 2 & 2 & 2 & 2 & 2 & 2 & 2 & 2 & 2\\ \hline \end{array}$	$\begin{array}{\vert l\vert cc\vert} \hline dt & 1 & 3 \\ \hline dh & 4 & 2 \\ \hline dv & 25 & 30 \\ \hline \end{array}$

Link performance function:
