Steenbrink Net

$net={\rm TrafficExample}('Steenbrink')$

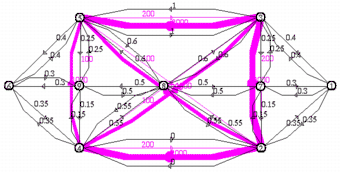

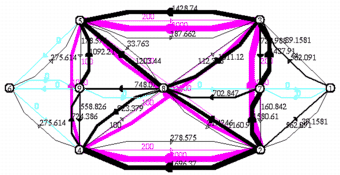

Figure 13: Non-assigned and Assigned Steenbrink Net

GP	LPF data	Demands
$\begin{array}{\vert c\vert c\vert c\vert} \hline nn & ln & dn\\ \hline 9 & 36 & 12\\ \hline \end{array}$	$\begin{array}{\vert ccl\vert} \hline t0 & \in & [0,\;1],\\ \hline ca & = & 0, \\ \hline ma & \in & [3.0e-4,\; 2.0e-3],\\ \hline ba & = & 1. \\ \hline \end{array}$	$\begin{array}{\vert ccl\vert} \hline dv &\in & [100,\; 2000]\\ \hline \end{array}$

Link performance function:

This example can be found in: Steenbrink P.A., Optimization of Transport Networks, John Wiley & Sons, London, 1974.
