# 2.1 Introductory Example

In this section we give an introductory example of how a problem is solved with the aid of the conversational programs in the MODULEF library.

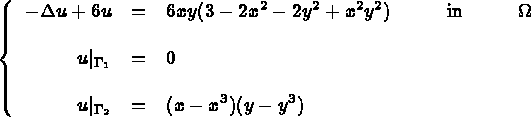

Consider the following boundary value problem:

where the domain, , and the boundaries, and , are described in figure 2.1

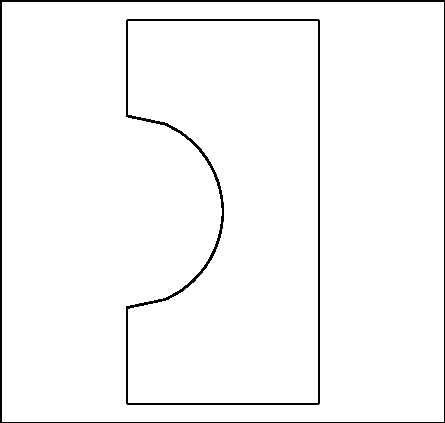

Figure 2.1: An introductory example

The exact solution to the above problem is given by:

We solve this problem utilizing straight and curved finite elements of degree 2 (elements TRIA 2P2D and TRIA 2P2C of the THER library).

Following the steps in section 1.1.3, we will create all the relevant data files interactively, execute the modules corresponding to the various steps, and finally complete this example by investigating the accuracy of the numerical solution compared to the exact solution and conclude with a plot of the isovalues.

Step 1:

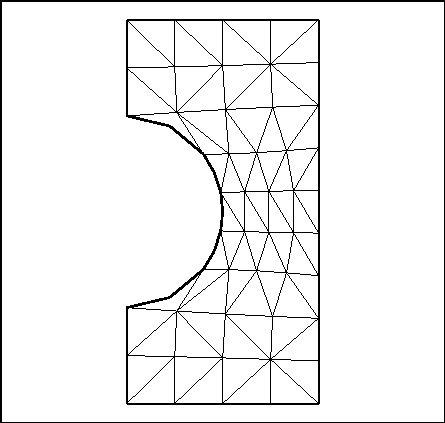

Mesh of the domain

The preprocessor APNOXX is utilized to create the data and run the 2D mesh generator module, APNOPO. A call to APNOXX generates a main menu with three options:

1. Create a data file,
2. Execute the module if the data file exists, and
3. END to exit from module.

A formatted data file is created interactively by responding to the "CREATE option on the main menu, i.e., by typing the letter "C" on your keyboard.

Remember: CAPITALS only!

You will now be confronted with various questions and prompts, to which you must respond by entering the appropriate keyword, data, etc. You can also specify how much screen output you would like when executing the module (for debugging purposes for example) by choosing a value of IMPRE between 0 and 10, where 0 indicates no output, and 10 indicates maximum output. Additional information is obtained by entering a " Y " to the " HELP " prompt. The input parameters pertaining to the example under consideration are indicated in brackets.

A copy of the entire process, i.e., creation of data files and execution and results, is included in each step in order to facilitate getting acquainted with the various MODULEF modules.

The input is described in detail below:

• Firstly, you are requested to enter a job title, maximum 72 characters between single quotes (ex: 'TEST EXAMPLE').

• The name of the data file must be entered (ex: NOPO.DATA).

• The curved line is defined with the aid of a function parser, i.e., by specifying " Y " to the prompt

" ARE YOU USING FUNCTION PARSERS (YES-NO-?) ? ".

Additional information is output by entering " ? ".

The first data values to be specified are:

IMPRE
the output parameter, where (0 IMPRE 10), and
NFONC
the number of curves to be defined (ex: 1).

A curve is defined by a number (from 1 to 99) which is associated with each curve equation. These curve numbers serve as line, or side, reference numbers (for keywords LIGN, and RETR, respectively). Therefore, in this example, the curve is designated by reference number 2, and the straight lines by reference number 1.

Each curve must then be defined as follows:

the curve number
(ex: 2), and
the equation of the curve
including no blanks and ending with ";"
[4] (ex: X**2+Y**2-0.25;).

• The remaining information is specified by specifying certain keywords which constitutes the mesh generating process. In order to obtain a listing of all the available keywords, type a " ? " after the " KEYWORD ? " prompt.

• The characteristic points are generated by specifying the keyword POIN:
 We first specify: IMPRE: the output parameter, and then NPOINT: the number of points characterizing the mesh (ex: 6). Each point is described by its: NOREF: reference number (ex: 1), X: x-coordinate, and Y: y-coordinate.

• The characteristic lines are generated by entering the keyword LIGN:

As before, we specify:

IMPRE:
the output parameter, and then
NDLM:
the number of lines characterizing the mesh (ex: 6).

Each line is defined by specifying:

NOELIG:
number of nodes including extremities,
NEXTR1:
point number at extremity 1,
NEXTR2:
point number at extremity 2,
( Note: The line must be described in the trigonometric direction, i.e., to define the curve in the present example, NEXTR1 = 6 and NEXTR2 = 5.)

NOREFL:
reference number of the line
(ex: NOREFL = 1 for lines 1, 2, 3, 4 and 6, and NOREFL = 2 for line 5),
NFFRON:

if NFFRON > 0 then the line is described by a function parser, or by function FFRONT
(ex: NFFRON = 10 for line 5), or

if NFFRON = 0 then the line is a straight line connecting NEXTR1 to NEXTR2
(ex: NFFRON = 0 for lines 1, 2, 3, 4, and 6), or

if NFFRON = -1 then the intermediary points are entered manually, or

if NFFRON = -2 , then the line is the portion of a circle centered at the origin and passing through points NEXTR1 and NEXTR2, or
if NFFRON = -3 then the line is the portion of a circle centered at a specified point and passing through points NEXTR1 and NEXTR2, and

RAISON:
is the ratio of geometric progression between the generated points on the line (ex: 1, i.e., the points are equidistant)

Note: Additional information is obtained by entering a " Y " to the " HELP " prompt.

• The mesh generator QUAC is used:

Keywords POIN and LIGN must have been executed before.

The four sides of the quadrangle are defined by:
 side 1: line 1 side 2: line 2 side 3: line 3 side 4: lines 4, 5 and 6.

Note: The number of points per line is equal on opposite sides.

The following data must be entered:

IMPRE:
the print parameter,
NIVEAU:
the level (an integer between 0 and 35) of the resulting D.S. NOPO storing the mesh (NOdes and POints) (ex: 1),
NUDSD:
the number of the sub-domain to be meshed (ex: 1),
NBRELI:
the number of lines on the contour of this sub-domain (ex: 6), and
NS1L:
the direction of the first line of the contour (ex: 1):
NS1L = 1 : from NEXTR1 to NEXTR2, and
NS1L = -1 : otherwise.

A list of the lines that form the contour is entered as follows:

NOLI(I):
number of the I line of the contour, in an anti-clockwise direction
(ex: 1, 2, 3, 4, 5, 6).

And lastly the following data values must be specified:

IMAX:
the number of points on the 1 side. This number defines the four sides of the quadrangle. (ex: 5), and
(ex: -1)
= 0; mesh by triangles,
= -1: triangles with particular treatment at the corners,
= -2: as above, but a more regular mesh, etc.

• The keyword ADPO generates non-vertex nodes.

This keyword can only be activated after all the previous ones.

The following data must be input:

IMPRE:
the output parameter,
NIVO1:
the level of the initial D.S. NOPO storing the mesh (ex: 1),
NIVO2:
the level of the resulting D.S. NOPO (ex: 2),
NI:
the number of nodes on the sides, excluding extremities (ex: 1),
ISET:
the number of internal nodes for each triangle (ex: 0),
ISEQ:
the number of internal nodes for each quadrangle (ex: 0), and
NOESOM:
(ex: 1)
= 1: the vertices are nodes,
= 0: if not.

• The keyword RENC renumbers the nodes.

This keyword comes at the end of the process, just before keywords SAUV and FIN.

The following values must be specified:

IMPRE:
the print parameter,
NIVO1:
the level of the input D.S. NOPO (ex: 2, resulting from ADPO), and
NIVO2:
the level of the resulting D.S. NOPO (ex: 1).

• The keyword SAUV saves the D.S. NOPO, the mesh, in a sequential file.

This keyword can be activated at any moment to save part or whole of mesh.

The following data values must be stipulated:

IMPRE:
the output parameter,
NINOPO:
the level of the D.S. NOPO to be saved (ex: 1),
NTNOPO:
the number of associated arrays, generally 0 (ex: 0), and
NOM_NOPO:
the name of the file containing the D.S. NOPO (ex: TEST.NOPO).

• The keyword FIN terminates the execution.

Once the data file is created, we are ready to generate the corresponding mesh. This is achieved be choosing option EXECUTE from the main menu.

The input consists only of the following:

• The name of the data file must be entered (ex: NOPO.DATA).

Some output will appear on your screen, depending on the value of the output parameter IMPRE. After execution you are returned to the main menu from which you can exit by typing " END ".

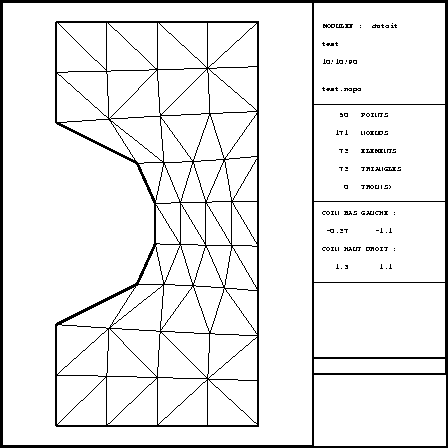

A printout of the data generation process and the screen output resulting from the execution is given below:

```B\$ apnoxx

****************
EXECUTING APNOPO : ( 2D MESH )
****************

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

C
-- TITLE OF THE JOB ( 20 CHARACTERES AT MOST ) ?
'TEST EXAMPLE'
**************************************************************************
CONVERSATIONAL CREATION OF DATA IN APNOPO
**************************************************************************
--  NAME OF DATAFILE TO CREATE (A) ?
NOPO.DATA
--  HELP                      (YES-NO) ?
N
--  ARE YOU USING A FUNCTION PARSER (YES-NO-?) ?
Y
--  HELP                      (YES-NO) ?
N
-- IMPRE NFONC ?
1 1
THE      1 CURVES ARE NUMBERED FROM 1 TO      1 (YES-NO) ?
N
**  ENTER THE EXPRESSION F(X,Y) ( = 0. ) ENDING WITH ;
**  MAXIMUM LENGHT A64 ( 64 SPACES )
**  EXAMPLE :' X**2 + Y**2 - 4;'
OR :   X*X+Y*Y-4;
NUMBER OF CURVE      1 ?
2
-- CURVE  1 WITH NUMBER      2 :
X**2+Y**2-0.25;
--  KEYWORD ?
POIN
--  HELP                      (YES-NO) ?
N
--  IMPRE NPOINT ?
1 6
--  POINT NUMBER      1 : NOREF X Y ?
1 0 -1
--  POINT NUMBER      2 : NOREF X Y ?
1 1 -1
--  POINT NUMBER      3 : NOREF X Y ?
1 1 1
--  POINT NUMBER      4 : NOREF X Y ?
1 0 1
--  POINT NUMBER      5 : NOREF X Y ?
1 0 0.5
--  POINT NUMBER      6 : NOREF X Y ?
1 0 -0.5
-- REMAIN IN THIS KEYWORD     (YES-NO) ?
N
--  KEYWORD ?
LIGN
--  HELP                      (YES-NO) ?
N
--  IMPRE NDLM ?
1 6
-- LINE NUMBER      1 : NOELIG NEXTR1 NEXTR2 NOREFL NFFRON RAISON ?
5 1 2 1 0 1
-- LINE NUMBER      2 : NOELIG NEXTR1 NEXTR2 NOREFL NFFRON RAISON ?
10 2 3 1 0 1
-- LINE NUMBER      3 : NOELIG NEXTR1 NEXTR2 NOREFL NFFRON RAISON ?
5 3 4 1 0 1
-- LINE NUMBER      4 : NOELIG NEXTR1 NEXTR2 NOREFL NFFRON RAISON ?
3 4 5 1 0 1
-- LINE NUMBER      5 : NOELIG NEXTR1 NEXTR2 NOREFL NFFRON RAISON ?
6 6 5 2 10 1
** THE FUNCTION WITH INDEX      2 DESCRIBS LINE      5
-- LINE NUMBER      6 : NOELIG NEXTR1 NEXTR2 NOREFL NFFRON RAISON ?
3 6 1 1 0 1
--  REMAIN IN THIS KEYWORD    (YES-NO) ?
N
--  KEYWORD ?
QUAC
--  HELP                      (YES-NO) ?
N
--  IMPRE NIVEAU NUDSD NBRELI NS1L ?
1 1 1 6 1
--  NOLO(  1) ?
1
--  NOLO(  2) ?
2
--  NOLO(  3) ?
3
--  NOLO(  4) ?
4
--  NOLO(  5) ?
5
--  NOLO(  6) ?
6
5 -1
--  DELETE                    (YES-NO) ?
N
--  KEYWORD ?
--  HELP                      (YES-NO) ?
N
--  IMPRE NIVEA1 NIVEA2 N1 ISET ISEQ NOESOM ?
1 1 2 1 0 0 1
--  DELETE                    (YES-NO) ?
N
--  KEYWORD ?
RENC
--  HELP                      (YES-NO) ?
N
--  IMPRE NIVEA1 NIVEA2 ?
1 2 1
--  DELETE                    (YES-NO) ?
N
--  KEYWORD ?
SAUV
--  HELP                      (YES-NO) ?
N
--  IMPRE NINOPO NOM_NOPO NTNOPO ?
1 1 TEST.NOPO 0
--  DELETE                    (YES-NO) ?
N
--  KEYWORD ?
FIN

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

E
-- NAME OF THE DATA FILE ?
NOPO.DATA

-------------------------------------------------------------------------
COURBES
-------------------------------------------------------------------------
** PROCESSING OF KEYWORD COUR
------------------------------

++ OPEN(11,FILE='',SPEC='SCRATCH,UNFORMATTED',RECL=0)

-------------------------------------------------------------------------
POIN
-------------------------------------------------------------------------
** PROCESSING OF KEYWORD POIN
------------------------------

-------------------------------------------------------------------------
LIGN
-------------------------------------------------------------------------
** PROCESSING OF KEYWORD LIGN
------------------------------

-------------------------------------------------------------------------
QUAC
-------------------------------------------------------------------------
** PROCESSING OF KEYWORD QUAC
------------------------------

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE QUACOO : TEST EXAMPLE
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
END OF MODULE QUACOO
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

-------------------------------------------------------------------------
-------------------------------------------------------------------------
------------------------------

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

-------------------------------------------------------------------------
RENC
-------------------------------------------------------------------------
** PROCESSING OF KEYWORD RENC
------------------------------

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE GIBBS : TEST EXAMPLE
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE RENUM1 : TEST EXAMPLE
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

RENUMBERING OF NODES
--------------------

NUMBER OF NODES :       171

------------------------------------------------------------------
I CHARACTERISTICS    I BEFORE RENUMBERING  I AFTER RENUMBERING   I
------------------------------------------------------------------
I BAND WIDTH         I             133     I              30     I
------------------------------------------------------------------
I TOTAL PROFILE      I           11718     I            1998     I
I MEDIUM PROFILE     I              68.526 I              11.684 I
------------------------------------------------------------------

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
END OF MODULE RENUM1
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
END OF MODULE GIBBS
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

-------------------------------------------------------------------------
SAUV
-------------------------------------------------------------------------
** PROCESSING OF KEYWORD SAUV
------------------------------

++ OPEN(12,FILE='test.nopo',SPEC='UNFORMATTED',RECL=0)

-------------------------------------------------------------------------
FIN
-------------------------------------------------------------------------
** PROCESSING OF KEYWORD FIN
------------------------------

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
END OF MODULE APNOPO
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

END
```

The resulting data file, created by following the steps above, looks as follows:

```'TEST EXAMPLE                                                        '
COURBES
1                                 \$ IMPRE
COURBE02(X,Y)=
X**2+Y**2-0.25;
FIN
'POIN                                                                '
1     6                            \$ IMPRE NPOINT  \$
\$   NOP   NOREF(NOP)     X(NOP).            Y(NOP).  \$
1       1         0.000000E+00     -.100000E+01
2       1         0.100000E+01     -.100000E+01
3       1         0.100000E+01     0.100000E+01
4       1         0.000000E+00     0.100000E+01
5       1         0.000000E+00     0.500000E+00
6       1         0.000000E+00     -.500000E+00
'LIGN                                                                '
1     6                            \$ IMPRE  NDLM   \$
\$   NOLIG NOELIG NEXTR1 NEXTR2 NOREFL NFFRON       RAISON \$
1      5      1      2      1      0     0.100000E+01
2     10      2      3      1      0     0.100000E+01
3      5      3      4      1      0     0.100000E+01
4      3      4      5      1      0     0.100000E+01
5      6      6      5      2     10     0.100000E+01
6      3      6      1      1      0     0.100000E+01
'QUAC                                                                '
1     1     1     6     1          \$ IMPRE NIVEAU NUDSD NBRELI NS1L
\$ LIST OF THE CONTOUR LINES :
1     2     3     4     5     6
1     1     2     1     0          \$ IMPRE NIVEA1 NIVEA2 N1 ISET
0     1                            \$ ISEQ NOESOM
'RENC                                                                '
1     2     1                      \$ IMPRE NIVEA1 NIVEA2
'SAUV                                                                '
1     1     0                      \$ IMPRE NINOPO NTNOPO
TEST.NOPO                              \$ FILE NAME
'FIN                                                                 '
```

The resulting mesh is stored in a data structure, under the name you specified when creating the data file, and can be plotted by calling the preprocessor TRNOXX, and specifying the D.S. NOPO file name, for example:

 Call preprocessor: TRNOXX Specify data structure file name: TEST.NOPO

The resulting mesh is shown in figure 2.2.

Figure 2.2: The mesh (plot generated by TRNOXX)

Now that you have successfully generated a mesh, stored in a D.S. NOPO, we may proceed to the next step.

Step 2:
Choice of finite elements

Once the D.S. NOPO is created, we are ready to generate the interpolation functions. As discussed earlier, the example under consideration is a thermal type problem. We therefore choose finite element from the THERMAL library. We are concerned with a two-dimensional domain, and decide to use two-dimensional (2) straight (D) and curved (C) triangular (TRIA) finite elements with polynomial basis functions of degree 2 (P2 Lagrange), denoted TRIA 2P2D and TRIA 2P2C in the MODULEF library.

The preprocessor COMAXX is utilized to perform this step. As for step 1, the data file is created by choosing option CREATE from the main menu, and responding to the various prompts.

The input is described in detail below:

• The name of the data file must be entered (ex: COMA.DATA).

• The problem dimension must be specified (ex: 2).

• The use of curved finite elements necessitates the entering of the curve on which the projections will be performed.

The curve data is input in exactly the same manner as in step 1.

• The following information must be input:

• number of sub-domains: (ex: 1),
• number of reference numbers: (ex: 2),
• number of curved lines: (ex: 1), and
• curved line number: the reference number designated to each curve, in step 1 (ex: 2).

• The finite elements used are specified as follows:

• The library containing the desired finite elements is specified (ex: THER).

A list of the available libraries can be obtained by typing a " ? " in response to the prompt " LIBRARY NAME ? ".

• The finite element name is entered for each type of element used
(ex: TRIA 2P2D and TRIA 2P2C)

Type " ? " when in doubt.

• The following file names must be input:

• the name of the I.D.S. NOPO file, created in step 1, storing the mesh (ex: TEST.NOPO),
• the name of the file containing the resulting O.D.S. MAIL describing the mesh including all information regarding the interpolation (ex: TEST.MAIL), and
• the name of the file containing the resulting O.D.S. COOR storing the coordinates of points (ex: TEST.COOR).

• There are no associated data arrays in the present example (ex: N).

Once the data file has been created we may execute this module by choosing option EXECUTE from the main menu.

The input is described below:

• The name of the data file must be entered (ex: COMA.DATA).

• The output parameter ( 0 IMPRE 10) must be specified (ex: 5).

The data creation procedure and the output corresponding to this step is printed below:

```B\$ comaxx
****************
EXECUTING COMACO : ( INTERPOLATION )
****************

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

C
**************************************************************************
CONVERSATIONAL DATA CREATION OF COMACO
**************************************************************************

-- NAME OF FILE TO CREATE ?
COMA.DATA
-- SPACE DIMENSION ?
2
-- ARE YOU USING A FUNCTIONS PARSER (YES-NO-?) ?
Y
PRINT PARAMETER               (I)  IMPRE
NUMBER OF CURVES TO DEFINE    (I)  NFONC
-- IMPRE NFONC ?
1 1
THE      1 CURVES ARE NUMBERED FROM 1 TO      1 (YES-NO) ?
N
**  ENTER THE EXPRESSION F(X,Y) ( = 0. ) ENDING WITH ;
**  MAXIMUM LENGHT A64 ( 64 SPACES )
**  EXAMPLE :' X**2 + Y**2 - 4;'
OR :   X*X+Y*Y-4;
CURVE NUMBER      1 ?
2
-- CURVE  1 WITH NUMBER      2 :
X**2+Y**2-0.25;
-- NUMBER OF SUB-DOMAINS ?
1
-- NUMBER OF REFERENCE NUMBERS ?
2
-- NUMBER OF CURVED LINES ?
1
-- NUMBER OF THE CURVED LINE :   1 ?
2
** CALL THE ELEMENT LIBRARY ( IDTECA=0 ) **
-- LIBRARY NAME ( NAME IN A4 OR ? ) ?
THER
-- NUMBER OF STRAIGHT ELEMENT TYPES IN THE SUB-DOMAIN:  1 ?
1
-- NAME OF THE STRAIGHT ELEMENT ( IN A4,1X,A4 OR ? ) ?
TRIA 2P2D
-- NUMBER OF CURVED ELEMENT TYPES IN THE SUB-DOMAIN :  1 ?
1
-- NAME OF THE CURVED ELEMENT ( IN A4,1X,A4 OR ? ) ?
TRIA 2P2C
-- FILE NAME OF THE INPUT D.S. NOPO ?
TEST.NOPO
-- FILE NAME OF THE OUTPUT D.S. MAIL ?
TEST.MAIL
-- FILE NAME OF THE OUTPUT D.S. COOR ?
TEST.COOR
-- ARE THERE TABLES TO ASSOCIATE (YES-NO) ?
N

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

E
-- NAME OF THE DATA FILE ?
COMA.DATA
-- PRINT PARAMETER OF THE D.S. ?
1
++ OPEN(11,FILE='test.nopo',SPEC='OLD,UNFORMATTED',RECL=0)
++ OPEN(12,FILE='test.mail',SPEC='UNFORMATTED',RECL=0)
++ OPEN(13,FILE='test.coor',SPEC='UNFORMATTED',RECL=0)
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE COMACO :
END OF MODULE COMACO
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

TABLE  M A I 2
--------------

SPACE DIMENSION                           (NDIM) :      2
NUMBER OF UNKNOWNS OF THE VARIATIONAL FORMULATION (NINCFV) :      1
NUMBER OF TYPES OF ELEMENTS             (NTYELM) :      2
NUMBER OF REFERENCES                       (NNR) :      2
NUMBER OF TYPES OF NODES                (NTYNOE) :      1
NUMBER OF TYPES OF POINTS               (NTYPOI) :      1
NUMBER OF WORDS OF TABLE MAI3            (LMAI3) :     36
POINTS ARE ONLY DEFINED BY COORDINATES
NODES AND POINTS ARE NOT IDENTICAL      (NCOPNP) :      0
MAX NUMBER OF WORDS FOR AN ELEMENT      (NMMAEL) :     28
NUMBER OF WORDS OF THE TABLE MAIL        (LMAIL) :   1421
STORAGE OPTION                           (NOPFI) :      0

TABLE C O O 2
-------------
TYPE OF THE TABLE COO4               (NTYT) :     2
NUMBER OF ITS INDEX                 (NINDI) :     2
SPACE DIMENSION                      (NDIM) :     2
MAX VALUE OF THE SECOND INDEX          (M2) :    65
SEGMENTATION CODE                   (NCODS) :     1
NUMBER OF BLOCS                     (NBLOC) :     1
TYPE OF THE COORDINATE AXIS        (NTACOO) :     1

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

END
```

The resulting data file is shown below:

```     1                                 \$ USING THE FUNCTION PARSER
1                                 \$ IMPRE
COURBE02(X,Y)=
X**2+Y**2-0.25;
FIN
2     1     0                     \$ NDIM   NDSD   NBSDC
2     1                           \$ NNR    NBLC
2
THER                                  \$ LIBRARY NAME
1                                 \$ NTYED OF SUB-DOMAIN      1
TRIA 2P2D                             \$ THE NAME OF THE STRAIGHT ELEMENTS
1                                 \$ NTYEC OF SUB-DOMAIN      1
TRIA 2P2C                             \$ THE NAME OF THE CURVED ELEMENTS
TEST.NOPO                             \$ FILE NAME
0                                \$     AND LEVEL OF THE D.S. NOPO
TEST.MAIL                             \$ FILE NAME
0                                \$     AND LEVEL OF THE D.S. MAIL
TEST.COOR                             \$ FILE NAME
0                                \$     AND LEVEL OF THE D.S. COOR
0     0                           \$ NTMAIL  NTCOOR
```

Step 3:
Entering of physical data, and creation of element arrays

Once the mesh is constructed and the interpolation is defined, it is necessary to enter the physical data of the problem under consideration. As discussed earlier in section 1.1.2, the present example can be solved in terms of the classical thermal problem by specifying some parameters in order to obtain a simplified system, which describes the problem under consideration. Thus, by specifying the following parameters

= 1,
= , a unit matrix,
g
= 0 ,
= , and
= 0,

we obtain the simplified form of the mass and stiffness matrices and force vector, which enables us to solve the present problem as a thermal type problem (see [100]).

The data description is performed with preprocessor FOMIXX. We choose to define the function via the subroutine FORCEV and the rest of the data in array /CAR. Subroutine FORCEV is printed below to aid you.

The input is described in detail below:

• The name of the data file must be entered (ex: FOMI.DATA).

• If more information is required regarding the input data, enter " Y " to the prompt " HELP ".

• The file names of the files containing the following data structures must be entered, along with their level numbers and number of associated arrays:

• O.D.S. FORC describing the loads (ex: TEST.FORC 1 0), and
• O.D.S. MILI describing the characteristics of materials (ex: TEST.MILI 1 1).

• Firstly, we will describe the manner of furnishing the data necessary to calculate the RHS vector(s) (for the computation of ).

The number of load cases, or RHS vectors, is given by:

NDSM:
(ex: 1)

• The processing is done globally (by reference numbers or sub-domain numbers) (ex: Y).

• The following values must then be input:

NDIM:
dimension (ex: 2),
NDSD:
total number of sub-domains (ex: 1), and
NBFR:
total number of reference numbers (ex: 0).

• There is surface data applicable to the present sub-domain (ex: Y), and nothing more (ex: N).

• A description of the surfaces loads must be input:

NOPT:
(ex: 1)
for a isotropic material, and
otherwise.
ITRAIT:
(ex: 2)
The data is furnished by:
1: array,
2: subroutine FORCE, or
3: user defined subroutine.

• Information concerning subroutine FORCE must be entered (ITRAIT=2):

LOPT:
subroutine option for this load case (ex: 1), and
start address in the subroutine (ex: 1).

• We will now proceed to describe the data corresponding to the matrices (ex: and [k] corresponding to the mass and stiffness matrices respectively).

• For each array associated (see above) with the D.S. MILI (ex: 1), we must specify:

NOMTAB:
the name of the array (ex: /CAR),
NTYTAB:
its type (ex: 2),
1: integer,
2: single precision,
5: double precision,
3: logical, and
4: character,
generally, for a thermal problem : single precision type 2, and
in elasticity : double precision type 5 and
NBVAR:
the number of variables (ex: 4).

• The data to be stored in the array specified above must then be entered:

In the present example, to calculate (recall equations (1.7) and (1.8)):

:
set [k] = I and g = 0,
:
set , and
:
set and ,

If the data values do not enter the problem under consideration, for example g and are zero, we may concatenate the data.

Thus, for the present example, we input only:

/CAR(1):
(ex: 1),
/CAR(2):
(ex: 1),
/CAR(3):
(ex: 0), and
/CAR(4):
(ex: 1).

A comment, written between single quotes, must be input to describe the above array of data

(ex: ' RO AND THERMAL CONDUCTIVITY (UNIT MATRIX) ').

You also have the opportunity to re-enter the data in the array under consideration.

• As before, the processing is done globally (of elements) (by reference numbers or sub-domain numbers) (ex: Y),

• after which the following values must then be input:

NDIM:
dimension (ex: 2),
NDSD:
total number of sub-domains (ex: 1), and
NBFR:
total number of reference numbers (ex: 0).

• The description of the surfaces is now given by:

NOPT:
(ex: 1, as before)
NOPT > 0 for a isotropic material, and
NOPT < 0 otherwise.
ITRAIT:
(ex: 1, instead of 2 previously)
The data is furnished by:
1: array,
2: subroutine MILIEU, or
3: user defined subroutine.

• Lastly, the following entities must be specified:

NTABL:
the name of the data array for the present case (ex: /CAR), and

After completing the data file you will be confronted with the main menu, from which you can choose to either create another data file (C), execute the module (E) once the data file is created, or terminate the process (END). Suppose that we choose to execute FOMIXX be typing a " E ", then the input data are the following:

• The name of the data file must be entered (ex: FOMI.DATA).

• The output parameter ( 0 IMPRE 10) must be specified (ex: 5).

The data creation procedure is printed below, followed by the output generated by executing the preprocessor:

```B\$ fomixx
***************************
EXECUTING COFORC AND COMILI : ( DATA )
***************************

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

C
**************************************************
CONVERSATIONAL DATA CREATION FOR COFORC AND COMILI
**************************************************

--  NAME OF FILE TO CREATE (A) ?
FOMI.DATA
--  HELP (YES-NO) ?
N
-- NOMFIC (FORC)  NIFORC NTFORC ?
TEST.FORC 1 0
-- NOMFIC (MILI)  NIMILI NTMILI ?
TEST.MILI 1 1

** WE WILL DESCRIBE THE MANNER IN WHICH TO ENTER THE DATA
NECESSARY TO CALCULATE THE RHS VECTOR(S)

-- NDSM ?
1
-- PROCESSING BY GROUP  (SUB-DOMAIN OR REFERENCE NUMBERS) (YES-NO) ?
Y
-- NDIM NDSD NBFR ?
2 1 0
SURFACE DATA  S-D :      1 (YES-NO) ?
Y
OTHER INFORMATION  (OYES-NO) ?
N
-- NOPT ITRAIT ( SURFACE  REFERENCE :      1 ) ?
1 2
1 1

** DATA DESCRIPTION FOR THE MATRI(X)(CES)

NUMBER OF ASSOCIATED TABLES FOR THE D.S. MILI :      1
FOR EACH GIVEN TABLE ENTER:
ITS NAME                 (A)  NOMTAB
ITS TYPE ( 1 TO 6 )      (I)  NTYTAB
**  INTEGER 1 , SP  2 , DP  5 , LOGICAL  3 , CHARACTER 4...
**  HEAT PROBLEM       : SINGLE PRECISION => TYPE 2
**  ELASTICITY PROBLEM : DOUBLE PRECISION => TYPE 5
ITS NUMBER OF VARIABLES  (I)  NBVAR
**  TABLE        1  ASSOCIATED WITH THE D.S. MILI
--  NOMTAB  NTYTAB   NBVAR  ?
/CAR 2 4
**  THE VARIABLES OF THE TABLE   /CAR
--  /CAR(     1) = ?
1
--  /CAR(     2) = ?
1
--  /CAR(     3) = ?
0
--  /CAR(     4) = ?
1
(60 CHARACTERS MAXI BETWEEN ')
'RO AND THE THERMAL CONDUCTIVITY'
-- RE-ENTER THE CHARACTERISTICS OF THE TABLE :/CAR (YES-NO) ?
N
-- PROCESSING BY GROUP  (SUB-DOMAIN OR REFERENCE NUMBERS) (YES-NO) ?
Y
-- NDIM NDSD NBFR ?
2 1 0
SURFACE DATA  S-D :      1 (YES-NO) ?
Y
OTHER INFORMATION  (YES-NO) ?
N
-- NOPT ITRAIT ( SURFACE  REFERENCE :      1 ) ?
1 1
/CAR 1

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

E
-- NAME OF DATA FILE (A) ?
FOMI.DATA
-- PRINT PARAMETER OF THE D.S. ?
1
++ OPEN(11,FILE='test.forc',SPEC='UNFORMATTED',RECL=0)
++ OPEN(12,FILE='test.mili',SPEC='UNFORMATTED',RECL=0)
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE COFORC :
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
END OF MODULE COFORC
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE COMILI :
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
END OF MODULE COMILI
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

TABLE  F O R 2
--------------
INFORMATION ( NUMBER OF SETS ) OR NOT ( 0 )

--------------------------------------------------
|            |                 |                 |
|            |   SUB-DOMAINS   |     ELEMENTS    |
|            |                 |                 |
--------------------------------------------------
|  VOLUMES   |          0      |          0      |
|  SURFACES  |          1      |          0      |
|  LINES     |          0      |          0      |
|  POINTS    |          0      |          0      |
--------------------------------------------------

TABLE  M I L 2
--------------
INFORMATION ( NUMBER OF SETS ) OR NOT ( 0 )

--------------------------------------------------
|            |                 |                 |
|            |   SUB-DOMAINS   |     ELEMENTS    |
|            |                 |                 |
--------------------------------------------------
|  VOLUMES   |          0      |          0      |
|  SURFACES  |          1      |          0      |
|  LINES     |          0      |          0      |
|  POINTS    |          0      |          0      |
--------------------------------------------------

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

END
```

The resulting data file, generated by executing preprocessor FOMIXX, is shown below:

``` TEST.FORC                             \$ FILE NAME OF THE D.S. FORC
1     0                           \$ ITS LEVEL AND NUMBER OF TABLES
TEST.MILI                             \$ FILE NAME OF THE D.S. MILI
1     1                           \$ ITS LEVEL AND NUMBER OF TABLES
\$  DATA RELATIVE TO THE D.S. FORC  \$
1                                  \$ NDSM
0     1     0     0     0     0     0     0
1     0     1     2                \$ NOSD NFRO NOPT ITRAIT
\$  DATA RELATIVE TO THE D.S. MILI  \$
/CAR       2       4                  \$ NAME TYPE NBREMOT
0.100000E+01                          \$ /CAR(  1)
0.100000E+01                          \$ /CAR(  2)
0.000000E+00                          \$ /CAR(  3)
0.100000E+01                          \$ /CAR(  4)
' RO AND THE THERMAL CONDUCTIVITY                       '  \$ CONTENTS
0     1     0     0     0     0     0     0
1     0     1     1                \$ NOSD NFRO NOPT ITRAIT
```

The user defined subroutine FORCE corresponding to the present example is printed below:

```      SUBROUTINE FORCEV(M,LOPT,X,NDIM,NPO,TAR,LTAR,LVECT,IADR,I1,
1                  NARE,IA)
C.....................................................................
C     AIM:
C     INPUT THE HEAT QUANTITIES IN ORDER TO CALCULATE THE
C     ELEMENT RHS VECTORS FOR A THERMAL PROBLEM.
C.....................................................................
C     INPUT PARAMETERS:
C     M         SUPER ARRAY
C     LOPT      COFORC PARAMETER
C     X         ELEMENT COORDINATE TABLE
C     NDIM      DIMENSION
C     NPO       NUMBER OF POINTS FOR THE ELEMENT
C     LTAR      NUMBER OF WORDS OF THE ARRAY TAR FOR EVRY ELEMENT
C     LVECT     NUMBER OF SAME COLOR ELEMENTS
C     I1        0 USUALLY (SEE DOC 14)
C     NARE      FACE NUMBER (3D), EDGE NUMBER (2D)
C     IA        ADRESS -1 IN MAIL OF THE 1ST WORD OF THE CURRENT ELEMENT
C
C     OUTPUT PARAMETERS:
C     TAR       ARRAY TAR(LTAR,LVECT)
C......................................................................
C
INTEGER M(*),IP(3)
REAL X(NPO,NDIM),TAR(*)
DATA IP/2,3,1/
IF (NPO .EQ. 3) THEN
C
C     THE ELEMENT IS STRAIGHT
C
DO 1 I = 1, 3
XM = 0.5*(X(I,1)+X(IP(I),1))
YM = 0.5*(X(I,2)+X(IP(I),2))
TAR(I) = 6*XM*YM*(3-2*(XM**2)-2*(YM**2)+(XM**2)*(YM**2))
1   CONTINUE
ELSE IF (NPO.EQ. 6) THEN
C
C     THE ELEMENT IS CURVED
C
DO 2 I = 1, 6
TAR(I) = 6*X(I,1)*X(I,2)*(3-2*X(I,1)**2-2*X(I,2)**2
+           +X(I,1)**2*X(I,2)**2)
2   CONTINUE
ELSE
C
C     ERROR MESSAGE
C
IMPRIM = IINFO('I')
WRITE(IMPRIM,1000) 'ERROR FORCE'
STOP
END IF
1000 FORMAT(1X,A)
END
```

Comments: The two types of finite elements do not need the same amount of data. It is possible to distinguish between a straight element and a curved element by the number of points (3 for a straight element, 6 for a curved element).

The element arrays are created by preprocessor THELXX. The input data file is generated by choosing option CREATE from the main menu and supplying the relevant responses to the remaining options or questions.

The input is described in detail below:

• The name of the data file must be entered (ex: TAE.DATA).

• The file names of the files containing the following data structures must be entered:

• I.D.S. MAIL containing the mesh and interpolation data (ex:
[4] TEST.MAIL),
• I.D.S. COOR containing the coordinates of points (ex: TEST.COOR), and
• O.D.S. TAE containing the element arrays: mass, stiffness, loads, and stresses (ex: TEST.TAE).

• There are no associated data arrays associated (ex: N).

• We do not make use of the POBA file (ex: N).

• We utilize the I.D.S. MILI (ex: Y) and input:

• the name of the I.D.S. MILI file containing the material characteristics (ex: TEST.MILI).

• We utilize the I.D.S. FORC (ex: Y) and input:

• the name of the file containing the I.D.S. FORC describing the RHS loads (ex: TEST.FORC).

• Specify the type of the problem under consideration:

NPROV:
(ex: 1)
1: thermal,
2: elastic,
3: streamlines.

• The mass matrix (not diagonal), stiffness matrix and RHS vector must be calculated, the flux is not calculated for this example (ex: Y, N, Y, Y, and N).

There is a linear combination between mass/stiffness (ex: Y and 1). The coefficients are stored in a array, /LIN in this example, and contains the values (6, 1) (keeping in mind the variational formulation of our problem).

Having created the data file, we proceed by choosing option EXECUTE from the main menu. However, before being able to execute THELXX, subroutine FORCE must be compiled and linked to preprocessor THELXX.

The input is described below:

• The name of the data file must be entered (ex: TAE.DATA).

• The output parameter ( 0 IMPRE 10) must be specified (ex: 5).

The data creation procedure and screen output of preprocessor THELXX is given below:

```B\$ thelxx
****************
EXECUTING THELAS (NEW) : ( ELEMENT COMPUTATIONS )
****************

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

C
**************************************************************************
CONVERSATIONAL DATA CREATION OF THENEW
**************************************************************************

-- NAME OF FILE TO CREATE ?
TAE.DATA
-- FILE NAME OF THE INPUT D.S. MAIL ?
TEST.MAIL
-- FILE NAME OF THE INPUT D.S. COOR ?
TEST.COOR
-- FILE NAME OF OUTPUT D.S. TAE  ?
TEST.TAE
-- ARE THERE ASSOCIATED TABLES (YES-NO) ?
N
-- DO YOU USE THE POBA FILE (YES-NO) ?
( BASIS POLYNOMIALS ... IN DIRECT ACCESS )
N
-- DO YOU USE THE D.S. MILI (YES-NO) ?
Y
-- FILE NAME OF THE INPUT D.S. MILI ?
TEST.MILI
-- DO YOU USE THE D.S. FORC (YES-NO) ?
Y
-- FILE NAME OF THE INPUT D.S. FORC ?
TEST.FORC
-- TYPE OF PROBLEM                         (NPROV) ?
1 : THERMAL , 2 : ELASTIC , 3 : STREAMLINES
1
-- COMPUTE THE MASS MATRIX (YES-NO) ?
Y
-- IT MAY BE DIAGONAL (YES-NO) ?
N
-- COMPUTE THE STIFFNESS MATRIX (YES-NO) ?
Y
-- COMPUTE THE RHS VECTORS (YES-NO) ?
Y
-- COMPUTE THE FLUX (YES-NO) ?
N
-- ARE THERE LINEAR MASS-STIFFNESS COMBINATIONS (YES-NO) ?
Y
-- NUMBER OF LINEAR MASS-STIFFNESS COMBINATIONS ?
1
-- NAME (4 CHARACTERS ) OF THE TABLE WITH THESE VALUES ?
/LIN
-- COEFFICIENTS OF COMBINATION NUMBER :     1 ?
6 1
-- FILE NAME OF COLOURS (NOMCOU) OR EMPTY
AND MAX LENGTH OF THE VECTORS (LVECT)
VIDE 1

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

E
!! YOU USE THE LAST VERSION OF THELAS
YOUR DATA FILE MUST END WITH :
-- NAME OF THE DATA FILE  ?
TAE.DATA
-- PRINT PARAMETER ?
1
++ OPEN(11,FILE='test.mail',SPEC='OLD,UNFORMATTED',RECL=0)
++ OPEN(12,FILE='test.coor',SPEC='OLD,UNFORMATTED',RECL=0)
++ OPEN(13,FILE='test.tae',SPEC='UNFORMATTED',RECL=0)
++ OPEN(14,FILE='test.mili',SPEC='OLD,UNFORMATTED',RECL=0)
++ OPEN(15,FILE='test.forc',SPEC='OLD,UNFORMATTED',RECL=0)
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE THENEW :

** WARNING READRE : ARRAY TRAV  HAS ZERO LENGTH WITH ADRES SET TO 1

TABLE  T A E 2
--------------

NUMBER OF ELEMENTS                                (NE) :    72
NUMBER OF NODES                                  (NOE) :   171
NUMBER OF TABLES ASSOCIATED AT EACH ELEMENT    (NTACE) :     2
MAX NUMBER OF NODES BY ELEMENT                (NNOMAX) :     6
CONSTANT NUMBER OF D.O.F. BY NODES ( 0 IF NOT )   (ND) :     1
MAXIMUM NUMBER OF D.O.F. PER NODE             (NDLMAX) :     1
NUMBER OF TYPES OF ELEMENTS                   (NTYELM) :     2
SUM OF THE NUMBER OF NODES OF THESE TYPES      (LNOET) :    12

PROBLEM  : 1 THERMAL, 2 ELASTIC, 3 OTHER       (NPROV) :     1
REQUESTED OPTIONS                             (NOPTNT) :  0

NUMBER OF THE ASSOCIATED TABLE COLLECTING :
THE MASS MATRIX                           :     0
THE STIFFNESS MATRIX                      :     0
THE FIRST LINEAR COMBINATION              :     1
THE LAST ONE                              :     1
THE RIGHT HAND SIDE(S)                    :     2
THE STRESSES OR THE FLOW                  :     0

END OF MODULE THENEW
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

END
```

The resulting data file is given below:

``` TEST.MAIL                             \$ FILE NAME
1                                 \$     AND LEVEL OF THE D.S. MAIL
TEST.COOR                             \$ FILE NAME
1                                 \$     AND LEVEL OF THE D.S. COOR
TEST.TAE                              \$ FILE NAME
1                                 \$     AND LEVEL OF THE D.S. TAE
0                                 \$ NTTAE
0                                 \$ 1 IF POBA IS USED , 0 IF NOT
1                                 \$ 1 IF MILI IS USED , 0 IF NOT
TEST.MILI                             \$ FILE NAME
1                                 \$     AND LEVEL OF THE D.S. MILI
1                                 \$ 1 IF FORC IS USED , 0 IF NOT
TEST.FORC                             \$ FILE NAME
1                                 \$     AND LEVEL OF THE D.S. FORC
1                                 \$ NPROV
1     1     1     0               \$ IOPT(*)
/LIN     1                            \$ L.C. TABLE NAME AND NUMBER OF L.C.
0.6000000E+01   0.1000000E+01       \$ COEFFICIENTS OF THE L.C.
VIDE        1                         \$ NOMCOU LVECT
```

Step 4:
Solution of the linear problem

The implementation of the boundary conditions is performed by the preprocessor COBDXX. The data file is created by choosing the CREATE option from the main menu.

The input is described in detail below:

• The name of the data file must be entered (ex: BDCL.DATA).

• The file names of the following data structures must be entered:

• D.S. MAIL (ex: TEST.MAIL) storing the mesh with interpolation data, and
• D.S. BDCL (ex: TEST.BDCL) storing the boundary conditions (list of restricted degrees of freedom).

• There are no data array associated (ex: N).

• Specify the form which the restricted d.o.f take (ex: 2):
1: constants, or
2: given by a function, and

the format of these values (ex: 2)
2: single precision, or
5: double precision.

• The D.S. MAIL is restored to guide the specification of boundary conditions (ex: Y).

• The boundary conditions are entered for each reference (ex: Y):
The variational unknown, the temperature in this case (ex: Y), is prescribed on the entire boundary in our example.

• We use the function parser (ex: Y).

• The name of the file containing the D.S. COOR storing the point coordinates must be entered (ex: TEST.COOR).

• The coordinates of non-vertex points are used (ex: Y).

• For each boundary, enter the expression VALCLR(X,Y,Z), describing the boundary condition, ending with the character " ; ".

Thus, for the example under consideration:

• on the boundary : u = 0 (ex: 0;), and
• on the boundary :
(ex: (X-X*X*X)*(Y-Y*Y*Y*Y);).

• The number of degrees of freedom per node is constant (ex: Y) for this example.

• There are no boundary conditions that appear as linear relations (ex: 0 (zero)).

We are now ready to execute (E) COBDXX, after which we exit from this preprocessor by typing " END ".

The input is described below:

• The name of the data file must be entered (ex: BDCL.DATA).

• The output parameter ( 0 IMPRE 10) must be specified (ex: 5).

The data creation procedure and output generated by preprocessor COBDXX are shown below:

```B\$ cobdxx
****************
EXECUTING COBDC1 : ( BOUNDARY CONDITIONS )
****************

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

C
**************************************************************************
CONVERSATIONAL DATA CREATION OF COBDC1
**************************************************************************

-- NAME OF FILE TO CREATE ?
BDCL.DATA
-- FILE NAME OF THE INPUT D.S. MAIL ?
TEST.MAIL
-- FILE NAME OF THE OUTPUT D.S. BDCL ?
TEST.BDCL
--THERE ARE ASSOCIATED TABLES (YES-NO) ?
N
-- THE RESTRICTED VALUES ARE :
1 ==> CONSTANTS , 2 ==> GIVEN BY FUNCTION ?
2
-- TYPE OF PRESCRIBED VALUES : 2 (SIMPLE) 5 (DOUBLE PRECISION) ?
2
-- WOULD YOU LIKE TO RESTORE THE D.S.E. MAIL TO GUIDE YOU (YES-NO) ?
Y
-- RESTRICT THE D.O.F. ON REFERENCE      1 (YES-NO) ?
Y
-- RESTRICT THE VARIATIONAL UNKNOWN : TEMPERATURE      (YES-NO) ?
Y
** RESTRICTION OF THE MNEMONIC : VN
-- RESTRICT THE D.O.F. ON REFERENCE      2 (YES-NO) ?
Y
-- RESTRICT THE VARIATIONAL UNKNOWN : TEMPERATURE      (YES-NO) ?
Y
** RESTRICTION OF THE MNEMONIC : VN
-- DO YOU USE THE FUNCTION PARSER (YES-NO) ?
Y
-- FILE NAME OF THE INPUT D.S. COOR ?
TEST.COOR
-- DO YOU USE THE COORDINATES OF THE NON-VERTEX POINTS (YES-NO) ?
Y
** ENTER THE EXPRESSION VALCLR(X,Y,Z)  ENDING WITH ;
FOR BOUNDARY      1 FOR ITS UNKNOWN      1 FOR ITS MNEMONIC VN
** EXAMPLE :' X**2 + Y -1;'
OU :   X**2+Y-1;
O;
** ENTER THE EXPRESSION VALCLR(X,Y,Z)  ENDING WITH ;
FOR BOUNDARY      2 FOR THE UNKNOWN      1 FOR ITS MNEMONIC VN
(X-X*X*X)*(Y-Y*Y*Y);
-- THE NUMBER OF D.O.F. PER NODE IS CONSTANT (YES-NO) ?
Y
-- CONDITIONS BY LINEAR RELATIONS :
0  NO CONDITIONS
1  ENTERED MANUALLY ( < 20 )
-1  ENTERED BY SUBROUTINE SPCLRL
0

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

E
-- NAME OF DATA FILE ?
BDCL.DATA
-- PRINT PARAMETER FOR THIS D.S. ?
1
++ OPEN(11,FILE='test.mail',SPEC='OLD,UNFORMATTED',RECL=0)
++ OPEN(12,FILE='test.bdcl',SPEC='UNFORMATTED',RECL=0)
++ OPEN(13,FILE='test.coor',SPEC='OLD,UNFORMATTED',RECL=0)

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE CORNOE :
END OF MODULE CORNOE
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE COBDC1 :
END OF MODULE COBDC1
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

TABLE  B D C 2
--------------
TYPE OF CONSTRAINED VALUES                (NTYB) :      2
NUMBER OF CARDS DESCRIBING CONSTRAINTS   (NCART) :     52
NUMBER OF LINEAR RELATIONS BETWEEN CONSTRAITS   (NCLRL) :      0
STORAGE OPTION                          (NOPTFI) :      0
NUMBER OF WORDS OF TABLE BDC3           (NMMAT3) :    156
NUMBER OF WORDS OF TABLE BDC4           (NMMAT4) :     52
NUMBER OF WORDS OF TABLE BDC5           (NMMAT5) :      0
NUMBER OF WORDS OF TABLE BDC6           (NMMAT6) :      0

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

END
```

The resulting data file generated by the above procedure is printed below:

``` TEST.MAIL                             \$ FILE NAME
35                                 \$    AND LEVEL OF THE D.S. MAIL
TEST.BDCL                             \$ FILE NAME
35                                 \$    AND LEVEL OF THE D.S. BDCL
0                                 \$ NTBDCL
2     2     2                     \$ ICONST  NBFR  NTYP
1     1  VN                       \$ REF   VARIATIONAL UNKN.  MNEMO
2     1  VN                       \$ REF   VARIATIONAL UNKN.  MNEMO
1                                 \$ 1 IF USING FUNCTION PARSER
TEST.COOR                             \$ FILE NAME
35                                 \$    AND LEVELOF THE D.S. COOR
1                                 \$ 1 IF D.S. COOR OF NODES
2                                 \$ NUMBER OF FUNCTIONS
VALCLR01(X,Y,Z)=
O;
VALCLR02(X,Y,Z)=
(X-X*X*X)*(Y-Y*Y*Y);
FIN
0                                 \$ 1 IF D.S. NDL1
0                                 \$ 1 IF B.C. IN L.R. MANUALLY ;
\$ -1 IF B.C. IN L.R. BY SUBROUTINE
```

After the boundary conditions are specified, the solution is computed by preprocessor CHOLXX. We first create the data file by choosing the CREATE option from the main menu.

The input is described in detail below:

• The name of the data file must be entered (ex: B.DATA).

• The name of the file containing the I.D.S. MAIL storing the mesh and interpolation data is entered next (ex: TEST.MAIL).

• The following data must be input:

NDSM:
the number of load cases, or RHS vectors (ex: 1), and
NTYP:
the type of values of the problem (ex: 2).

• The number of degrees of freedom per node is constant (ex: Y) in the present example, where

ND:
is the number of degrees of freedom per node (ex: 1).

• The name of the file containing the I.D.S. TAE storing the element arrays must be entered (ex: TEST.TAE).

• If there are prescribed boundary conditions (described in the I.D.S. BDCL (ex: Y), then

the name of the file containing the I.D.S. BDCL must be entered (ex: TEST.BDCL).

There are no linear relations (ex: N).

• The name of the file containing the O.D.S. B storing the solution vector is entered next (ex: TEST.B), and lastly

• the output parameter, IMPREB, corresponding to the solution must be entered (ex: 6).

We execute CHOLXX by choosing the EXECUTE option from the main menu.

The input is described below:

• The name of the data file must be entered (ex: B.DATA).

• The output parameter ( 0 IMPRE 10) must be specified (ex: 5).

A printout of the menu options, responses and results for preprocessor CHOLXX is given below:

```B\$ cholxx
**************************************
EXECUTING THE CHOLESKY SOLUTION METHOD
**************************************

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

C
**************************************************************************
CONVERSATIONAL DATA CREATION FOR THE CHOLESKY SEQUENCE (SEQUENTIAL)
**************************************************************************

-- NAME OF DATA FILE TO CREATE ?
B.DATA
-- FILE NAME OF THE INPUT D.S. MAIL ?
TEST.MAIL
-- NUMBER OF LOAD CASES          (NDSM) ?
TYPE OF VALUES OF THE PROBLEM (NTYP) ?
1 2
-- NUMBER OF D.O.F. PER NODE IS CONSTANT (YES-NO) ?
Y
-- NUMBER OF DEGREES OF FREEDOM PER NODE ?
1
-- FILE NAME OF THE INPUT D.S. TAE  ?
TEST.TAE
-- ARE THERE IMPOSED BOUNDARY CONDITIONS (YES-NO) ?
Y
-- FILE NAME OF THE INPUT D.S. BDCL ?
TEST.BDCL
-- ARE THERE LINEAR RELATIONS (YES-NO) ?
N
-- FILE NAME OF THE OUTPUT D.S. B    ?
TEST.B
-- PRINT PARAMETER FOR THE SOLUTION ?
6

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

E
-- NAME OF DATA FILE ?
B.DATA
-- PRINT PARAMETER FOR THE EXECUTION ?
1
++ OPEN(11,FILE='test.mail',SPEC='OLD,UNFORMATTED',RECL=0)
++ OPEN(12,FILE='test.tae',SPEC='OLD,UNFORMATTED',RECL=0)
++ OPEN(13,FILE='test.bdcl',SPEC='OLD,UNFORMATTED',RECL=0)
++ OPEN(14,FILE='test.b',SPEC='UNFORMATTED',RECL=0)
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE PREPAC :
NUMBER OF WORDS OF THE MATRIX          (LMUA5) :     1998
MAX DIFFERENCE BETWEEN 2 NODES OF AN ELEMENT (LBDP)    :       30
MAX DIFFERENCE BETWEEN 2 D.O.F. OF AN ELEMENT (LBDPDL) :       30
MAX NUMBER OF NODES PER ELEMENT       (NNOMAX) :        6
NUMBER OF RHS VECTORS                   (NDSM) :        1
NUMBER OF WORDS IN C.M. FOR D.S. NDL1 (MCNDL1) :        0
NUMBER OF WORDS IN C.M. FOR D.S. MUA   (MCMUA) :     2216
NUMBER OF WORDS IN C.M. FOR D.S. B       (MCB) :      216

END OF MODULE PREPAC
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE ASSMUA :
END OF MODULE ASSMUA
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE ASEMBV :
END OF MODULE ASEMBV
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE CLIMPC :
END OF MODULE CLIMPC
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE CHOLPC :
END OF MODULE CHOLPC
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE DRCHPC :
END OF MODULE DRCHPC
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

PRINT OUT OF D.S. B    OF LEVEL  1

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
TITLE                           :
DATE AND USER'S NAME            : 14/11/90  dutoit
DATA STRUCTURE TYPE             : B
LEVEL AND STATE NUMBER          :      1     2
NUMBER OF EXTRA TABLES          :      0

TABLE  B 2
----------
TYPE OF THE TABLE                           (NTYT) :      2
NUMBER OF INDICES AND THEIR MAXIMA        (NIND..) :      2     1   171
OPTION ( 1:PAGES OF SAME SIZE , 0:IF NOT )  (NCOD) :      1
NUMBER OF PAGES OF THE TABLE B4            (NBLOC) :      1
NUMBER OF NODES                              (NOE) :    171
NUMBER OF TABLES B4 ON THIS D.S.          (NBBLOC) :      1
CONSTANT NUMBER OF D.O.F. AT EACH NODE OR 0   (ND) :      1
NUMBER OF D.O.F. OR LENGHT OF A PAGE OF B4  (NTDL) :    171
STORAGE OPTION FOR B4                     (NCODSB) :     -1

TABLE  B 3
----------
POINTER ON THE LAST ROW OF EACH PAGE OF B4

1           0     2         171

TABLE B4(NDSM,NTDL) NUMBER :      1
-----------------------------------

TABLE B4(NDSM,NTDL) PAGINATED IN 1 OR MORE PAGES
------------------------------------------------
PAGE     1
----------
------------------------------------------------------
| NODE   | DOF | GLOBAL DOF|  LOAD CASE(S)           |
------------------------------------------------------
|      1 |   1 |        1  |    0.395995E-01
|      2 |   1 |        2  |    0.000000
|      3 |   1 |        3  |    0.633241E-01
|      4 |   1 |        4  |    0.000000
|      5 |   1 |        5  |    0.000000
|      6 |   1 |        6  |    0.000000
|      7 |   1 |        7  |    0.000000
|      8 |   1 |        8  |    0.000000
|      9 |   1 |        9  |    0.733093E-01
|     10 |   1 |       10  |    0.739653E-01

-- CREATE THE DATA  =-=  EXECUTE MODULE (DATA EXISTING)  =-=  END  =-=  ?
-                     -                                    ---

END
```

The resulting data file generated by preprocessor CHOLXX is printed below:

``` TEST.MAIL                             \$ FILE NAME
1                                 \$     AND LEVEL OF THE D.S. MAIL
1     2     1                     \$ NDSM  NTYP  ND
TEST.TAE                              \$ FILE NAME
1                                 \$     AND LEVEL OF THE D.S. TAE
1                                 \$ 1 IF BDCL IS USED , 0 IF NOT
TEST.BDCL                             \$ FILE NAME
1                                 \$     AND LEVEL OF THE D.S. BDCL
0                                 \$ 1 IF B.C. IN LINEAR RELATIONS EXIST
TEST.B                                \$ FILE NAME
1                                 \$     AND LEVEL OF THE D.S. B
6                                 \$ IMPREB
```

Step 5:
Post-processing

If the exact solution to the problem under consideration is known, we can use the post-processor NORMXX in order to determine the accuracy of the numerical solution, i.e., by calculating the error norms.

The input is described in detail below:

• Specify which norm is desired, by entering the corresponding number (ex: 1):

• 0: exit,
• 1: norm relative to the D.S. B,
• 2: norm relative to the D.S. TAE (stresses), or
• 3: energy norm.

• The names of the files containing the following data structures must be entered:

• I.D.S. MAIL storing the mesh and interpolation data (ex: TEST.MAIL),
• I.D.S. COOR storing the point coordinates (ex: TEST.COOR), and
• I.D.S. B storing the solution vector (ex: TEST.B).

• Indicate if you would like to store the output (ex: N).

• Specify the output parameter (ex: 6).

• The exact solution is entered utilizing the function parser (ex: Y), and specifying the file name (ex: SOLUTION), and specifying if this file exists already or not (ex: N).

The following information must also be supplied:

• the number of degrees of freedom (ex: 1),
• the type of solution (ex: 2):
2: single precision, or
5: double precision, and
• the expression, SOLEX(X,Y,Z), ending with a " ; "
(ex: (X-X*X*X)*(Y-Y*Y*Y)).

• Specify if you would like screen output (ex: Y).

• After the results are printed on your screen, you will be confronted with the main menu again, from which you can exit by entering a " 0 " (zero).

The screen output generated by preprocessor NORMXX, is shown below.

```B\$  normxx
*************
EXECUTE NORME : ( TEST WITH AN EXACT SOLUTION )
*************

-- EXIT                          : 0 ?
-- NORM RELATIVE TO A D.S.  B    : 1 ?
--  "      "     TO A D.S. TAE   : 2 ?
--                (STRESSES)
-- ENERGY NORM                   : 3 ?
1
-- FILE NAME OF THE INPUT D.S. MAIL ?
TEST.MAIL
-- FILE NAME OF THE INPUT D.S. COOR ?
TEST.COOR
-- FILE NAME OF THE INPUT D.S. B (SOLUTION) ?
%% THE D.S. B MUST BE IN SEQUENTIAL ACCESS
TEST.B
-- WOULD YOU LIKE TO STORE THE ERROR (YES-NO) ?
N
-- PRINT PARAMETER ?
6
-- WOULD YOU LIKE TO USE THE FUNCTION PARSER (YES-NO) ?
Y
-- DESCRIPTIVE FILE NAME OF FUNCTIONS
SOLUTION
++ OPEN(37,FILE='solution',SPEC='',RECL=0)
-- THIS FILE EXISTS ALREADY (YES-NO) ?
N
-- NUMBER OF DEGREES OF FREEDOM TO DESCRIBE ?
1
-- SOLUTION TYPE ( 2 IN SIMPLE PRECISION , 5 IN DOUBLE ) ?
2
** ENTER THE EXPRESSION  SOLEX(X,Y,Z)  ENDING WITH ;
FOR DEGREE OF FREEDOM  :      1
** EXAMPLE :' X**2 + Y -1;'
OR :   X**2+Y-1;
(X-X*X*X)*(Y-Y*Y*Y);
-- SCREEN OUTPUT (YES-NO) ?
Y
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
MODULE  NORME :
&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
-------------------------------------------------------------------------
| NODE  | DOF| GLOBAL DOF| MNEMO |  EXACT SOL     | CALCULATED SOL |  %   |
-------------------------------------------------------------------------
|     1 |  1 |      1    | VN    |    0.39400E-01    0.39599E-01  | 101. |
|     2 |  1 |      2    | VN    |    0.00000E+00    0.00000E+00  | 100. |
|     3 |  1 |      3    | VN    |    0.63040E-01    0.63324E-01  | 100. |
|     4 |  1 |      4    | VN    |    0.00000E+00    0.00000E+00  | 100. |
|     5 |  1 |      5    | VN    |    0.00000E+00    0.00000E+00  | 100. |
|     6 |  1 |      6    | VN    |    0.00000E+00    0.00000E+00  | 100. |
|     7 |  1 |      7    | VN    |    0.00000E+00    0.00000E+00  | 100. |
|     8 |  1 |      8    | VN    |    0.00000E+00    0.00000E+00  | 100. |
|     9 |  1 |      9    | VN    |    0.73171E-01    0.73309E-01  | 100. |
.
.
.

|   171 |  1 |    171    | VN    |    0.00000E+00    0.00000E+00  | 100. |
-------------------------------------------------------------------------

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&

PRINT OUT OF D.S. MAIL OF LEVEL  0

&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&
TITLE                           :
DATE AND USER'S NAME            : 14/11/90  dutoit
DATA STRUCTURE TYPE             : MAIL
LEVEL AND STATE NUMBER          :      0     0
NUMBER OF ASSOCIATED TABLES     :      0

TABLE  M A I 2
--------------

SPACE DIMENSION                           (NDIM) :      2
NUMBER OF UNKNOWNS OF THE VARIATIONAL FORMULATION (NINCFV) :      1
NUMBER OF TYPES OF ELEMENTS             (NTYELM) :      2
NUMBER OF REFERENCES                       (NNR) :      2
NUMBER OF TYPES OF NODES                (NTYNOE) :      1
NUMBER OF TYPES OF POINTS               (NTYPOI) :      1
NUMBER OF WORDS OF TABLE MAI3            (LMAI3) :     36
POINTS ARE ONLY DEFINED BY THEIR COORDINATES
NODES AND POINTS DO NOT COINCIDE        (NCOPNP) :      0
MAX NUMBER OF WORDS FOR AN ELEMENT      (NMMAEL) :     28
NUMBER OF WORDS OF THE TABLE MAIL        (LMAIL) :   1421
STORAGE OPTION                           (NOPFI) :      0

TABLE  M A I 3
--------------

NUMBER OF ELEMENTS                          (NE) :     72
NUMBER OF NODES                            (NOE) :    171
NUMBER OF POINTS                            (NP) :     65
NUMBER OF SUB-DOMAINS                     (NDSD) :      1

*** TABLE OF THE TYPES OF ELEMENTS ***

--------------------------------------------------------------------------------
|  S-D |      NODE       |    SEGMENT      |     TRIANGLE    |    QUADRANGLE   |
--------------------------------------------------------------------------------
|      | STRAIGHT CURVED | STRAIGHT CURVED | STRAIGHT CURVED | STRAIGHT CURVED |
--------------------------------------------------------------------------------
|  1   |        |        |        |        |TRIA2P2D|TRIA2P2C|        |        |
--------------------------------------------------------------------------------

--------------------------------------------------------------------------------
|  S-D |   TETRAHEDRON   |   PENTAHEDRON   |   HEXAHEDRON    |   SUPER-ELEMENT |
--------------------------------------------------------------------------------
|      | STRAIGHT CURVED | STRAIGHT CURVED | STRAIGHT CURVED | STRAIGHT CURVED |
--------------------------------------------------------------------------------
|  1   |        |        |        |        |        |        |        |        |
--------------------------------------------------------------------------------

TABLES   M A I 5   TO   M A I 8
-------------------------------
DESCRIPTION OF NODE TYPES

NUMBER OF VARIATIONAL UNKNOWNS FOR EACH NODE TYPE
-----------------------------------------------------

TYPE  1 :   1

NODE TYPE         1 :
--------------------
TEMPERATURE      (UNKNOWN  :  1) : VN

TABLES    M A I B  TO   M A I K
-------------------------------
DESCRIPTION OF ELEMENT TYPES

ELEMENT TYPE      1     :
-------------------
ELEMENT NAME                 : THERTRIA2P2D
ELEMENT CODE                 : 100002
THE ELEMENT IS A             : TRIANGLE
NUMBER OF NODES              :      6
NUMBER OF POINTS             :      3
NUMBER OF ASSOCIATED TABLES  :      1
-------------------------------------------------------------------------------
| NODE  | TYPE  |    COORDINATES ON THE UNIT ELEMENT                          |
-------------------------------------------------------------------------------
|     1 |     1 |   0.0000000      0.0000000
|     2 |     1 |    1.000000      0.0000000
|     3 |     1 |   0.0000000       1.000000
|     4 |     1 |   0.5000000      0.0000000
|     5 |     1 |   0.5000000      0.5000000
|     6 |     1 |   0.0000000      0.5000000
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
| POINT | TYPE  |    COORDINATES ON THE UNIT ELEMENT                          |
-------------------------------------------------------------------------------
|     1 |     1 |   0.0000000      0.0000000
|     2 |     1 |    1.000000      0.0000000
|     3 |     1 |   0.0000000       1.000000
-------------------------------------------------------------------------------
TABLE        1 ( TYPE ENTIER   ) :   1  MAX VALUE OF INDEX(ES) :     7
ELEMENT TYPE      2     :
-------------------
ELEMENT NAME                 : THERTRIA2P2C
ELEMENT CODE                 : 100003
THE ELEMENT IS A             : TRIANGLE
NUMBER OF NODES              :      6
NUMBER OF POINTS             :      6
NUMBER OF ASSOCIATED TABLES  :      1
-------------------------------------------------------------------------------
| NODE  | TYPE  |    COORDINATES ON THE UNIT ELEMENT                          |
-------------------------------------------------------------------------------
|     1 |     1 |   0.0000000      0.0000000
|     2 |     1 |    1.000000      0.0000000
|     3 |     1 |   0.0000000       1.000000
|     4 |     1 |   0.5000000      0.0000000
|     5 |     1 |   0.5000000      0.5000000
|     6 |     1 |   0.0000000      0.5000000
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
| POINT | TYPE  |    COORDINATES ON THE UNIT ELEMENT                          |
-------------------------------------------------------------------------------
|     1 |     1 |   0.0000000      0.0000000
|     2 |     1 |    1.000000      0.0000000
|     3 |     1 |   0.0000000       1.000000
|     4 |     1 |   0.5000000      0.0000000
|     5 |     1 |   0.5000000      0.5000000
|     6 |     1 |   0.0000000      0.5000000
-------------------------------------------------------------------------------
TABLE        1 ( TYPE ENTIER   ) :   1  MAX VALUE OF INDEX(ES) :     7

DL   ERROR         ERROR         NORME         ERROR         ERROR     AT NODE
ABSOLUTE L2   RELATIVE L2   L2 SOLUTION   RELATIVE L1   MAXIMUM

1   0.39979E-02   0.41671E-02   0.95940E+00   0.46745E-02   0.21462E+00    67

X =   0.934672      Y =  -0.921138E-03

-- EXIT                          : 0 ?
-- NORM RELATIVE TO A D.S.  B    : 1 ?
--  "      "     TO A D.S. TAE   : 2 ?
--                (STRESSES)
-- ENERGY NORM                   : 3 ?
0
Fortran STOP
```

The results are plotted with the aid of preprocessor TRMCXX. The plot shown in figure 2.3 is generated by calling preprocessor TRMCXX and specifying the file names in which the I.D.S. MAIL and I.D.S. COOR are stored. The isovalues are plotted by the same preprocessor, by selecting the appropriate option from the plot menu and entering the name of the file containing I.D.S. B. The resulting plot is shown in figure 2.4.

Comments: Note the difference between the mesh plot obtained with TRNOXX and the one obtained by TRMCXX. In the former the interpolation was not known.

Figure 2.3: Mesh (plot generated by TRMCXX)

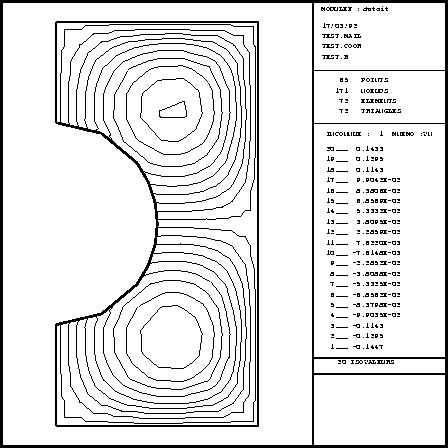

Figure 2.4: The isovalues (plot generated by TRMCXX)

Next: 2.2 Test 1: Thermal Problem Up: 2 Conversational tests Prev: 2 Conversational tests Contents
