2.5 APNOP3 flowchart

The choice of modules called by module APNOP3  is governed by keywords. Each keyword activates the corresponding module. The set of keywords and their associated values are given in a data file. The list of keywords is given in figure 2.1.

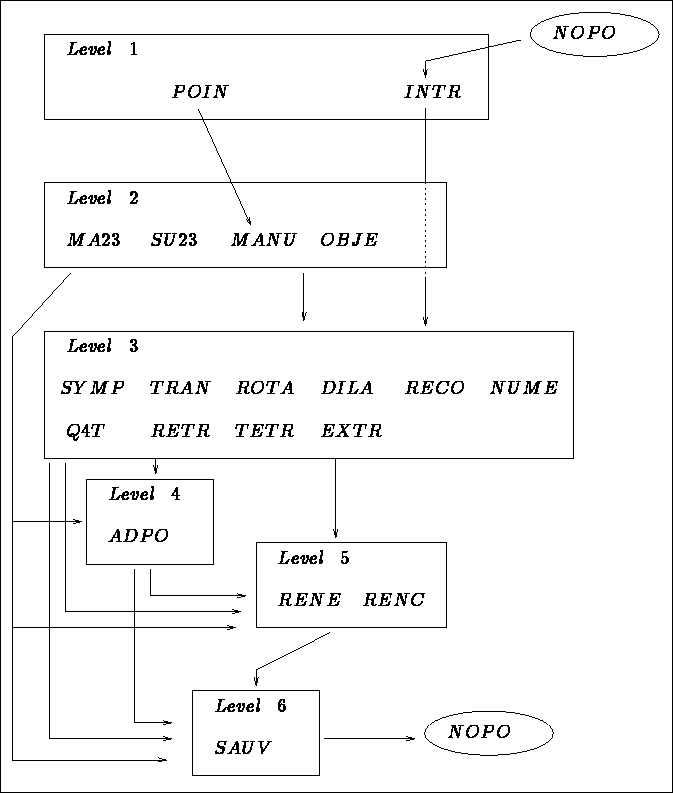

Figure 2.1: Flowchart of module APNOP3
